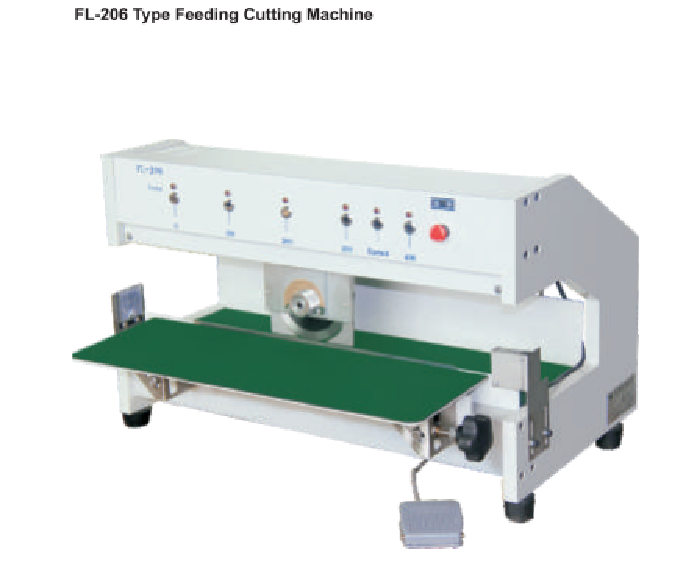

PCB Board Cutting Machine (Standard 400mm Length )
SKU:
MYRÂ 0.00
per item
Suitable for any V cut pcba.
Operating motor optimizes drive separately velocity: 300mm/500mm/Sec.
Keep the board stable when cutting the board. The upper circular blade moves from side to side, which can guarantee the cutting quality.
Cutting by machine reduces stress and avoids soldered dot crack.
Install Photoelectric induction device. When the operator puts his hand into the cutting board area, the machine will stop operation automatically.
Cutting length 1200mm,over 1200mm can be customized .
PCB thickness 0.5MM-3.2MM .
Residual PCB thickness standard 1/3 PC board thick, Min0.2mm,Max0.8mm.
V slot depth minimum 0.25MM.
Added external dimension after separating 0.1MM-0.2MM
